How neural networks are trained

Imagine you are a mountain climber on top of a mountain, and night has fallen. You need to get to your base camp at the bottom of the mountain, but in the darkness with only your dinky flashlight, you can’t see more than a few feet of the ground in front of you. So how do you get down? One strategy is to look in every direction to see which way the ground steeps downward the most, and then step forward in that direction. Repeat this process many times, and you will gradually go farther and farther downhill. You may sometimes get stuck in a small trough or valley, in which case you can follow your momentum for a bit longer to get out of it. Caveats aside, this strategy will eventually get you to the bottom of the mountain.

This scenario may seem disconnected from neural networks, but it turns out to be a good analogy for the way they are trained. So good in fact, that the primary technique for doing so, gradient descent, sounds much like what we just described.

Recall that training refers to determining the best set of weights for maximizing a neural network’s accuracy. In the previous chapters, we glossed over this process, preferring to keep it inside of a black box, and look at what already trained networks could do. In this chapter, we are going to look more closely at the process of training, and we shall see that it works much like the climber analogy we just described.

Neural networks can be used without knowing precisely how training works, just as on can operate a flashlight without knowing how the electronics inside it work. Most modern machine learning libraries have greatly automated the training process. Owing to those things and this topic being more mathematically rigorous, you may be tempted to skip this chapter, and indeed most of the remaining content in this book can be understood without it. But the intrepid reader is encouraged to proceed with this chapter, not only because it gives valuable insights into how neural nets can be applied and reconfigured, but because the topic itself is one of the most interesting in research. The ability to train large neural networks eluded us for many years and has only recently become feasible, making it one of the great success stories in the history of AI.

We’ll get to gradient descent in a few sections, but first, let’s understand why choosing weights is hard to begin with.

Why training is hard

A needle in a hyper-dimensional haystack

The weights of a neural network with hidden layers are highly interdependent. To see why, consider the highlighted connection in the first layer of the two layer network below. If we tweak the weight on that connection slightly, it will impact not only the neuron it propagates to directly, but also all of the neurons in the next layer as well, and thus affect all the outputs.

todo: figure with connection tweak

For this reason, we know we can’t obtain the best set of weights by optimizing one at a time; we will have to search the entire space of possible weight combinations simultaneously. How do we do this?

Let’s start with the simplest, most naive approach to picking them: random guesses. We set all the weights in our network to random values, and evaluate its accuracy on our dataset. Repeat this many times, keeping track of the results, and then keep the set of weights that gave us the most accurate results. At first this may seem like a reasonable approach. After all, computers are fast; maybe we can get a decent solution by brute force. For a network with just a few dozen neurons, this would work fine. We can try millions of guesses quickly and should get a decent candidate from them. But in most real-world applications we have a lot more weights than that. Consider our handwriting example from the previous chapter. There are around 12,000 weights in it. The best combination of weights among that many is now a needle in a haystack, except that haystack has 12,000 dimensions!

You might be thinking that 12,000-dimensional haystack is “only 4,000 times bigger” than the more familiar 3-dimensional haystack, so it ought to take only 4,000 times as much time to stumble upon the best weights. But in reality the proportion is incomprehensibly greater than that, and we’ll see why in the next section.

n-dimensional space is a lonely place

If our strategy is brute force random search, we may ask how many guesses will we have to take to obtain a reasonably good set of weights. Intuitively, we should expect that we need to take enough guesses to sample the whole space of possible guesses densely; with no prior knowledge, the correct weights could be hiding anywhere, so it makes sense to try to sample the space as much as possible.

To keep things simple, let’s consider two very small 1-layer neural networks, the first one with 2 neurons, and the second one with 3 neurons. We are also ignoring the bias for the moment.

todo: 2 and 3 neuron networks

In the first network, there are 2 weights to find. How many guesses should we take to be confident that one of them will lead to a good fit? One way to approach this question is to imagine the 2-dimensional space of possible weight combinations and exhaustively search through every combination to some level of granularity. Perhaps we can take each axis and divide it into 10 segments. Then our guesses would be every combination of the two; 100 in all. Not so bad; sampling at such density covers most of the space pretty well. If we divide the axes into 100 segments instead of 10, then we have to make 100*100=10,000 guesses, and cover the space very densely. 10,000 guesses is still pretty small; any computer will get through that in less than a second. The following figure shows sampling two parameters to 10 and 100 bins.

todo: figure: sampling to 10 bins = 100 possible guesses and 100 bins = 1000 possible guesses

How about the second network? Here we have three weights instead of two, and therefore a 3-dimensional space to search through. If we want to sample this space to the same level of granularity that we sampled our 2d network, we again divide each axis into 10 segments. Now we have 10 * 10 * 10 = 1,000 guesses to make. Both the 2d and 3d scenarios are depicted in the below figure.

todo: roatate and label axes

Left: a 2d square sampled to 10% density requires 10² = 100 points. Right: a 3d cube sampled to 10% density requires 10³ = 1000 points.

1,000 guesses is a piece of cake, we might say. At a granularity of 100 segments, we would have guesses. 1,000,000 guesses is still no problem, but now perhaps we are getting nervous. What happens when we scale up this approach to more realistic sized networks? We can see that the number of possible guesses blows up exponentially with respect to the number of weights we have. In general, if we want to sample to a granularity of 10 segments per axis, then we need samples for an -dimensional dataset.

So what happens when we try to use this approach to train our network for classifying MNIST digits from the first chapter? Recall that network has 784 input neurons, 15 neurons in 1 hidden layer, and 10 neurons in the output layer. Thus, there are weights. Add 25 biases to the mix, and we have to simultaneously guess through 11,935 dimensions of parameters. That means we’d have to take guesses… That’s a 1 with almost 12,000 zeros after it! That is an unimaginably large number; to put it in perspective, there are only atoms in the entire universe. No supercomputer can ever hope to perform that many calculations. In fact, if we took all of the computers existing in the world today, and left them running until the Earth crashed into the sun, we still wouldn’t even come close! And just consider that modern deep neural networks frequently have tens or hundreds of millions of weights.

This principle is closely related to what we call in machine learning the curse of dimensionality. Every dimension we add into a search space exponentially blows up the number of samples we require to get good generalization for any model learned from it. The curse of dimensionality is more often applied to datasets; simply put, the more columns or variables a dataset is represented with, the exponentially more samples from that dataset we need to understand it. In our case, we are thinking about the weights rather than the inputs, but the principle remains the same; high-dimensional space is enormous!

further reading: curse of dimensionality / eggshell example ...

todo: clean up COD paragraph

Obviously there needs to be some more elegant solution to this problem than random guesses, and indeed there are a number of them. Today, neural networks are generally trained using a variation of the gradient descent algorithm. To introduce the concept of gradient descent, we will again forget about neural networks for a minute, and start instead with a smaller problem, which we will scale up gradually.

A simpler example first: linear regression

Suppose we are given a set of 7 points, those in the chart to the bottom left. To the right of the chart is a scatterplot of our points.

2.41.7
2.81.85
3.21.79
3.61.95
4.02.1
4.22.0
5.02.7

The goal of linear regression is to find a line which best fits these points. Recall that the general equation for a line is , where is the slope of the line, and is its y-intercept. Thus, solving a linear regression is determining the best values for and , such that gets as close to as possible. Let’s try out a few random candidates.

todo: change y to f(x) for clarity

Three randomly-chosen line candidates

Pretty clearly, the first two lines don’t fit our data very well. The third one appears to fit a little better than the other two. But how can we decide this? Formally, we need some way of expressing how good the fit is, and we can do that by defining a cost function.

Cost function

The cost is a measure of the amount of error our linear regression makes on a dataset. Although many cost functions have been proposed, all of them essentially penalize us on distance between the predicted value of a given and its actual value in our dataset. For example, taking the line from the middle example above, , we highlight the error margins between the actual and predicted values with red dashed lines.

One very common cost function is called mean squared error (MSE). To calculate MSE, we simply take all the error bars, square their lengths, and calculate their average.

We can go ahead and calculate the MSE for each of the three functions we proposed above. If we do so, we see that the first function achieves a MSE of 0.17, the second one is 0.08, and the third gets down to 0.02. Not surprisingly, the third function has the lowest MSE.

We can get some intuition if we calculate the MSE for all and within some neighborhood and compare them. Consider the figure below, which uses two different visualizations of the mean squared error in the range where the slope is between -2 and 4, and the intercept is between -6 and 8.

todo: change p to b, and multiply by 0.5

Left: A graph plotting mean squared error for $ -2 \le m \le 4 $ and $ -6 \le b \le 8 $
Right: the same figure, but visualized as a 2-d contour plot where the contour lines are logarithmically distributed height cross-sections.

Looking at the two graphs above, we can see that our MSE is shaped like an elongated bowl, which appears to flatten out in an oval very roughly centered in the neighborhood around . In fact, if we plot the MSE of a linear regression for any dataset, we will get a similar shape. Since we are trying to minimize the MSE, we can see that our goal is to figure out where the lowest point in the bowl lies.

Adding more dimensions

The above example is quite minimal, having just one independent variable, , and thus two parameters, and . What happens when there are more variables? In general, if there are variables, a linear function of them can be written out as:

Or in matrix notation, we can summarize it as:

This may seem at first to complicate our problm horribly, but it turns out that the formulation of the problem remains exactly the same in 2, 3, or any number of dimensions. Although it is impossible for us to draw it now, there exists a cost function which appears like a bowl in some number of dimensions – a hyper-bowl! And as before, our goal is to find the lowest part of that bowl, objectively the smallest value that the cost function can have with respect to some parameter selection and dataset.

So how do we actually calculate where that point at the bottom is exactly? There are numerous ways to do so, with the most common approach being the ordinary least squares method, which solves it analytically. When there are only one or two parameters to solve, this can be done by hand, and is commonly taught in an introductory course on statistics or linear algebra.

Alas, ordinary least squares however cannot be used to optimize neural networks however, and so solving the above linear regression will be left as an exercise left to the reader. Instead we will introduce a much more powerful and general technique for solving both our linear regression, and neural networks: that of gradient descent.

The curse of nonlinearity

Recall the essential difference between the linear equations we posed and a neural network is the presence of the activation function (e.g. sigmoid, tanh, ReLU, or others). Thus, whereas the linear equation above is simply , a 1-layer neural network with a sigmoid activation function would be .

This nonlinearity means that the parameters do not act independently of each other in influencing the shape of the cost function. Rather than having a bowl shape, the cost function of a neural network is more complicated. It is bumpy and full of hills and troughs. The property of being “bowl-shaped” is called convexity, and it is a highly prized convenience in multi-parameter optimization. A convex cost function ensures we hav a global minimum (the bottom of the bowl), and that all roads downhill lead to it.

By introducing the nonlinearity, we give neural networks much more “flexibility” in moeling arbitrary functions, at the expense of losing this convenience. The price we pay is that there is no easy way to find the minimum in one step analytically anymore (i.e. by deriving neat equations for them). In this case, we are forced to use a multi-step numerical method to arrive at the solution instead. Although several alternative approaches exist, gradient descent remains the most popular and effective. The next section will go over how it works.

Gradient Descent

The general problem we’ve been dealing with – that of finding parameters to satisfy some objective function – is not specific to machine learning. Indeed it is a very general problem found in mathematical optimization, known to us for a long time, and encountered in far more scenarios than just neural networks. Today, many problems in multivariable function optimization – including training neural networks – generally rely on a very effective algorithm called gradient descent to find a good solution much faster than taking random guesses.

The gradient descent method

Intuitively, the way gradient descent works is similar to the mountain climber analogy we gave in the beginning of the chapter. First, we start with a random guess at the parameters, and start there. We then figure out which direction the cost function steeps downward the most (with respect to changing the parameters), and step slightly in that direction. We repeat this process over and over until we are satisfied we have found the lowest point.

To figure out which direction the cost steeps downward the most, it is necessary to calculate the gradient of the cost function with respect to all of the parameters. A gradient is a multidimensional generalization of a derivative; it is a vector containing each of the partial derivatives of the function with respect to each variable. In other words, it is a vector which contains the slope of the cost function along every axis.

Although we’ve already said that the most convenient way to solve linear regression is via ordinary least squares or some other single-step method, let’s quickly turn our attention back to linear regression to see a simple example of using gradient descent to solve a linear regression.

Recall the mean squared error loss we introduced in the previous section, which we will denote as $J$.

There are two parameters we are trying to optimize: $m$ and $b$. Let’s calculate the partial derivative of $J$ with respect to each of them.

How far in that direction should we step? This turns out to be an important consideration, and in ordinary gradient descent, this is left as a hyperparameter to decide manually. This hyperparameter – known as the learning rate – is generally the most important and sensitive hyperparameter to set and is often denoted as . If is set too low, it may take an unacceptably long time to get to the bottom. If is too high, we may overshoot the correct path or even climb upwards.

Denoting the assignment operation as $:=$, we can write the update steps for the two parameters as follows.

If we take this approach to solving the simple linear regression we posed above, we will get something that looks like this:

Example of gradient descent for linear regression with two parameters. We take a random guess at the parameters, and iteratively update our position by taking a small step against the direction of the gradent, until we are at the bottom of the cost function.

And if there are more dimensions? If we denote all of our parameters as $w_i$, thus giving us the form $f(x) = b + W^T X $, then we can extrapolate the above example to the multimensional case. This can be written down more succinctly using gradient notation. Recall that the gradient of $J$, which we will denote as $\nabla J$, is the vector containing each of the partial derivatives. Thus we can represent the above update step more succinctly as:

Example of gradient descent for non-convex cost function (such as a neural network), with two parameters $\theta_0$ and $\theta_1$. Source: Andrew Ng.

todo: save locally

further reading: Implementation of linear regression in python ... Chris Smith

further reading: link ... ?

Complicating things a bit

Neural networks are not linear

The linear regression we performed above gives

In fact, there are methods for quickly computing the minimum analytically or numerically without doing gradient descent. But because of activation functions, neural nets are not linear, and their loss functions are not convex.

[ bumpy image ]

Local minima

Stochastic gradient descent

Mini-batches

etc

Backpropagation

So now we know we can use gradient descent to solve for the weights of neural networks. Simply put, we calculate the gradient of the loss function with respect to the parameters, then do a small weight update in the direction of the gradient. But now we have another problem: how should we actually calculate the gradient? Naively, we can do it numerically using the

If we use Newton’s method to numerically calculate the gradient, it would require us doing two forward passes for every single weight in our network to do a single weight update. If we have thousands or millions of weights, and need to do millions of weight updates to arrive at a good solution, there’s no way this can take us a reasonable amount of time. Until we discovered the backpropagation algorithm and applied it successfully to neural networks, this was the main bottleneck preventing neural networks from achieving their potential.

So what is backpropagation? Backpropagation, or backprop for short, is short for “backward propagation of errors”

, and it is the way we train neural networks, i.e. how we determine the weights. Although backprop does not guarantee finding the optimal solution, it is generally effective at converging to a good solution in a reasonable amount of time.

The way backpropagation works is that you initialize the network with some set of weights, then you repeat the following sequence until you are satisfied with the network’s performance:

1) Take a batch of your data, run it through your network and calculate the error, that is the difference between what the network outputs and what we want it to output, which is the correct values we have in our test set.

2) After the forward pass, we can calculate how to update the weights slightly in order to reduce the error slightly. The update is determined by "backward propagating" the error through the network from the outputs back to the inputs.

3) Adjust the weights accordingly, then repeat this sequence.

Typically the loss of the network will look something like this with each round of this sequence. We typically stop this process once the network appears to be converging on some error.

The way backpropagation is actually implemented uses a method called gradient descent, which comes in a number of different flavors. We will look at the overarching method, and address the differences among them.

Loss function

We have already seen the first step of this sequence – forward propagating the data through the network and observing the outputs. Once we have done so, we quantify the overall error or "loss" of the network. This can be done in a few ways, with L2-loss being a very common loss function.

L2-loss is {equations}

If we change the weights very slightly, we should observe the L2-loss will change very slightly as well. And we want to change them in such a way that the loss decreases by as much as possible. So how do we achieve this?

Descending the mountain

Let’s reconnect what we have right now back to our analogy with the mountain climber. Suppose we have a simple network with just two weights. We can think of the the climber’s position on the mountain, i.e. the latitude and longitude, as our two weights. And the elevation at that point is our network’s loss with those two weight values. We can reduce the loss by a bit by adjusting our position slightly, in each of the two cardinal directions. Which way should we go?

Recall the following property of a line in 2d: [2d line, m * dx = dy]. In 3d, it is also true that m1 * dx + m2 * dy = dz.

So let’s say we want to reduce y by dy. If we calculate the slope m, we can find dx (use w instead?). One way to get this value is to calculate it by hand. But it turns out to be slow, and there is a better way to calculate it, analytically. The proof of this is elegant, but is outside the scope of this chapter. The following resources explain this well. Review [__] if you are interested.

other SGD explanations 1) Michael Nielsen 2) Karpathy’s hackers NN as the computational graph 3) harder explanation (on youtube, i have the link somewhere…) 4) Simplest (videos which explain backprop)

//Once we have observed our loss, we calculate what’s called the gradient of our network. The gradient i

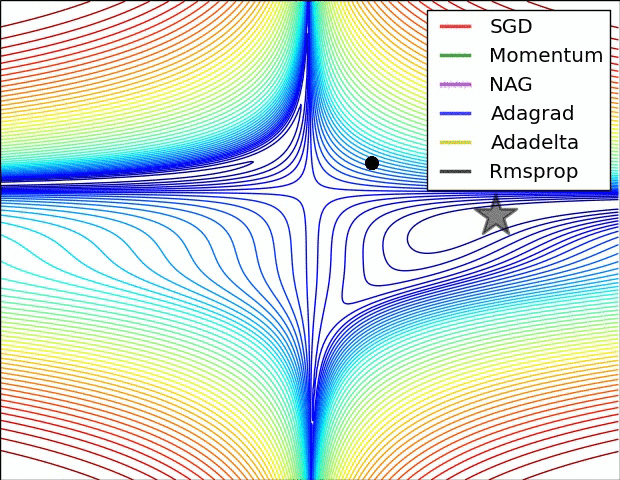

AlecRad’s gradient descent methods

different gradient descent methods

Figure by Alec Radford

Setting up a training procedure

Backpropagation, as we’ve described it, is the core of how neural nets are trained. From here, a few minor refinements are added to make a proper training procedure. The first is to separate our data into a training set and a test set.

Then cross validation GIF (taking combos of 5 -> train on 1)

n-dimensional space is a lonely place (or t-SNE?)

validation set, cross-validation regularization, overfitting how to prevent overfitting

At this point, you may be thinking, “why not just take a big hop to the middle of that bowl?” The reason is that we don’t know where it is! Recall that

Animation:

LHS varying slope of linear regressor, with vertical lines showing error red bar showing amount of error RHS graph error vs slope

2D analogue with jet-color

In 3D, this becomes difficult to draw but the principle remains the same. We are going in the spatial direction towards our minimum point.

Beyond, we can’t draw at all, but same principle.

So how does this apply to neural networks?

This is, in principle, what we have to do to solve a neural network. We have some cost function which expresses how poor or inaccurate our classifier is, and the cost is a function of the way we set our weights. In the neural network we drew above, there are 44 weights.

Learning by data

Cost function

Sum(L1 / L2 error)

Overfitting

In all machine learning algorithms, including neural networks, there is a common problem which has to be dealt with, which is the problem of overfitting.

Recall from the previous section that our goal is to minimize the error in unknown samples, i.e. the test set, which we do by setting the parameters in such a way that we minimize loss in our known samples (the training set). Sometimes we notice that we have low error in the training set, but the error in the test set is much higher. This suggests that we are overfitting, a phenomenon which is common to all machine learning algorithms and must be dealt with. Let’s see an example.

The two graphs below show the same set of training samples observed, the blue circles. In both, we attempt to learn the best possible polynomial curve through them. The one on the left we see a smooth curve go through the points, accumulating some reasonable amount of error. The one on the right oscillates wildly but goes through all of the points precisely, accruing almost zero error. Ostensibly, the one on the right must be better because it has no error, but clearly something’s wrong.

The one on left blah blah.

[1) smooth model] [2) wavy overfit model] (from bishop)

The way we can think of overfitting is that our algorithm is sort of "cheating." It is trying to convince you it has an artificially high score by orienting itself in such a way as to get minimal error on the known samples (since it happens to know their values ahead of time).

It would be as though you are trying to learn how fashion works but all you’ve seen is pictures of people at disco nightclubs in the 70s, so you assume all fashion everywhere consists of nothing but bell bottoms, jean jackets, and __. Perhaps you even have a close family member whom this describes.

Researchers have devised various ways of combating overfitting (neural networks, not wardrobes). We are going to look at the few most important ones.

0) Regularization

Regularization refers to imposing constraints on our neural network besides for just minimizing the error, which can generally be interpreted as "smoothing" or "flattening" the model function. As we saw in the polynomial fitting regression example, a model which has such wild swings is probably overfitting, and one way we can tell it has wild swings is if it has large coefficients (weights for neural nets). So we can modify our loss function to have an additional term to penalize large weights, and in practice, this is usually the following.

Use a penalty term In the above example, we see we must have high coefficients. We want to penalize high coefficients. One way of doing that is by adding a regulariation term to the loss. One tha tworks well is L2 squared loss. It looks like this.

We see that this term increases when the weights are large numbers, regardless if positive or negative. By adding this to our loss function, we give ourselves an incentive to find models with small w’s, because they keep that term small.

But now we have a new dilemma. Mutual conflict between the terms.

Dropout

1) Training + test set

crucial. No supervised algo proceeds without it. split into a test set. The reason why is that if we evaluate our ML algorithm’s effectiveness on a set that it was also trained on, we are giving the machine an opportunity to just memorize the training set, basically cheating. This won’t generalize

2) Training + validation + test set

Dividing our data into a training set and test set may seem bulletproof, but it has a weakness: setting the hyper-parameters. Hyper-parameters (personally I think they shoul gd have been called meta-parameters) are all the variables we have to set besides for the weights. Things like the number of hidden layers and how many neurons they have, the regularization strength, the learning rate, and others that are specific to various other algorithms.

These have to be set before we begin training, but it’s not obvious what the optimal numbers should be. So it may seem reasonable to try a bunch of them, train each of the resulting architectures on the same training set data, measure the error on the test set, and keep the hyper-parameters which worked the best.

But this is dangerous because we risk setting the hyper-parameters to be the values which optimize that particular test set, rather than an arbitrary or unknown one.

We can get around this by partitioning our training data again – now into a reduced training set and a validation set, which is basically a second test set where the labels are withheld. Thus we choose the hyper-parameters which give us the lowest error on the validation set, but the error we report is still on the actual test set, whose true labels we have still never revealed to our algorithm during training time.

#

So we use a training set and test set. But if we have hyper-parameters (personally I think they should be called meta-parameters), we need to use a validation set as well. This gives us a second line of defense against overfitting.

misc content

In the previous section, we introduced neural networks and showed an example of how they will make accurate predictions when they have the right combination of weights. But we glossed over something crucial: how those weights are actually found! The process of determining the weights is called training, and that is what the rest of this chapter is about.

This topic is more mathematically challenging than the previous chapters. In spite of that, our aim is to give a reader with less mathematical training an intuitive if not rigorous understanding of how neural networks are solved. If you are struggling with this chapter, know that it isn’t wholly necessary for most of the rest of this book. It is sufficient to understand that there is some way of training a network which can be treated like a black box. If you regard training as a black box but understand the architecture of neural networks presented in previous chapters, you should still be able to continue to the next sections. That said, it would be very rewarding to understand how training works. May guide finer points, etc, plus it’s mathematically elegant… we will try to supplement the math with visually intuitive and analogies.

notes because perceptron had step function, was non-differentiable, backprop came later

86 - backprop first applied to annns rumelhart et al 86

hinton/salakhutinov 2006 - first deep network

There are a number of important aspects about training – you might have thought it’s unfair that we predict training set – after all it can just memorize them – we’ll get to this and other details of training in the [how they are trained].

Chris Olah Backprop: http://colah.github.io/posts/2015-08-Backprop/ Chris Olah: neural net topology http://colah.github.io/posts/2014-03-NN-Manifolds-Topology/ Karpathy Neural nets for hackers http://karpathy.github.io/neuralnets/

backprop step by step example https://mattmazur.com/2015/03/17/a-step-by-step-backpropagation-example/ step by step 2 http://experiments.mostafa.io/public/ffbpann/

https://www.inf.fu-berlin.de/inst/ag-ki/rojas_home/documents/tutorials/dimensionality.pdfs

http://cs231n.github.io/neural-networks-3/ alecrad 2 images

LBGFS, Adam

Gradient descent isn’t the only way to solve neural networks. Notably, BGFS (or LBGFS when memory is limited) is sometimes used, but it operates on a similar principle: iterative, small weight updates convering on a good solution.

implementation of gradient descent for linear regression: https://spin.atomicobject.com/2014/06/24/gradient-descent-linear-regression/

Image [16] : http://cs229.stanford.edu/notes/cs229-notes1.pdf

nice implementation: https://crsmithdev.com/blog/ml-linear-regression/

https://distill.pub/2017/momentum/?utm_content=bufferd4ee6&utm_medium=social&utm_source=twitter.com&utm_campaign=buffer
